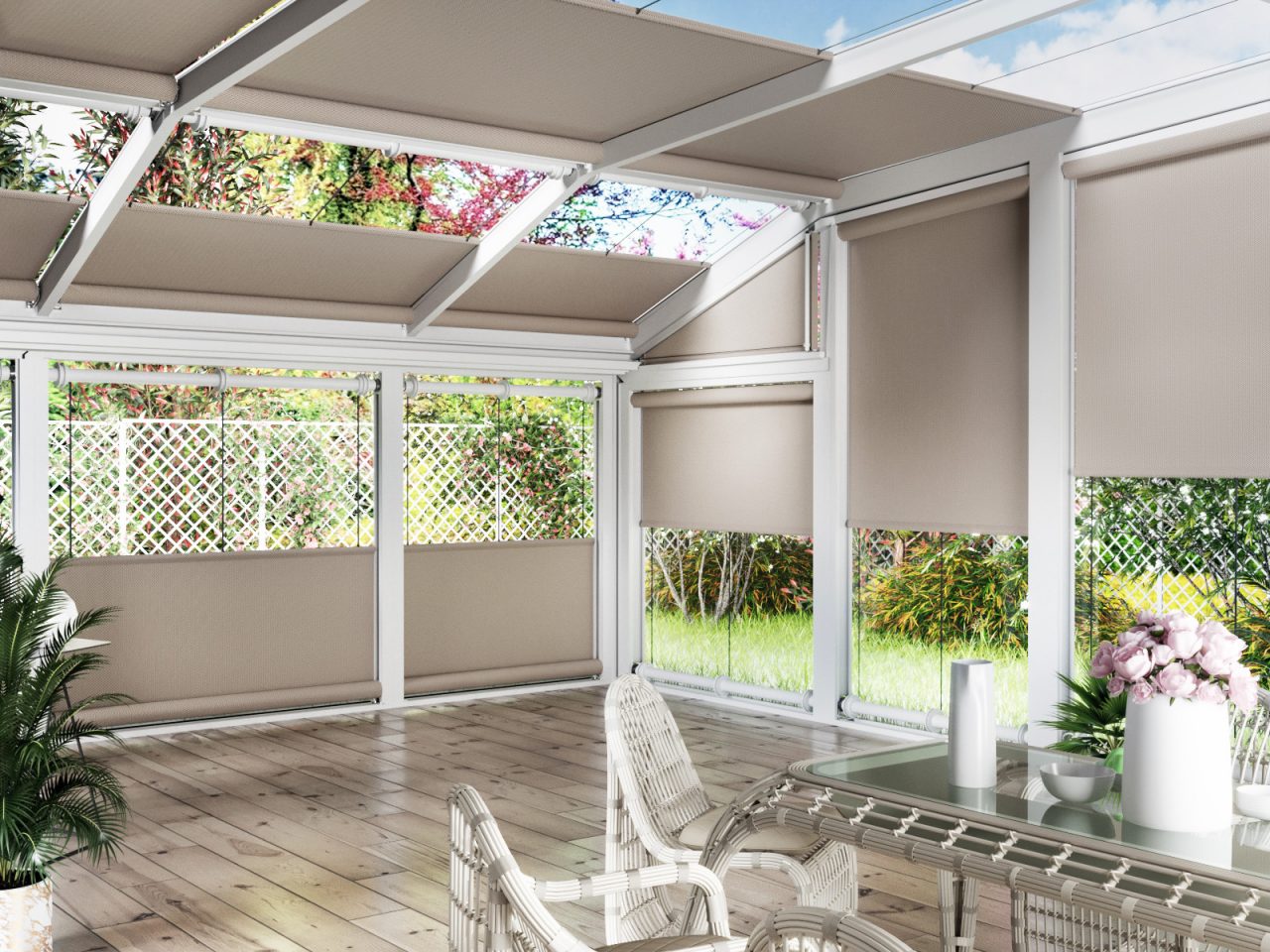

Due to the growing popularity of large glass structures and the demand for sun-protection systems for them, WellSun has developed several types of sun-protection systems to create comfortable shade in atriums, winter gardens and other structures with glass roofs and inclined glass facades.

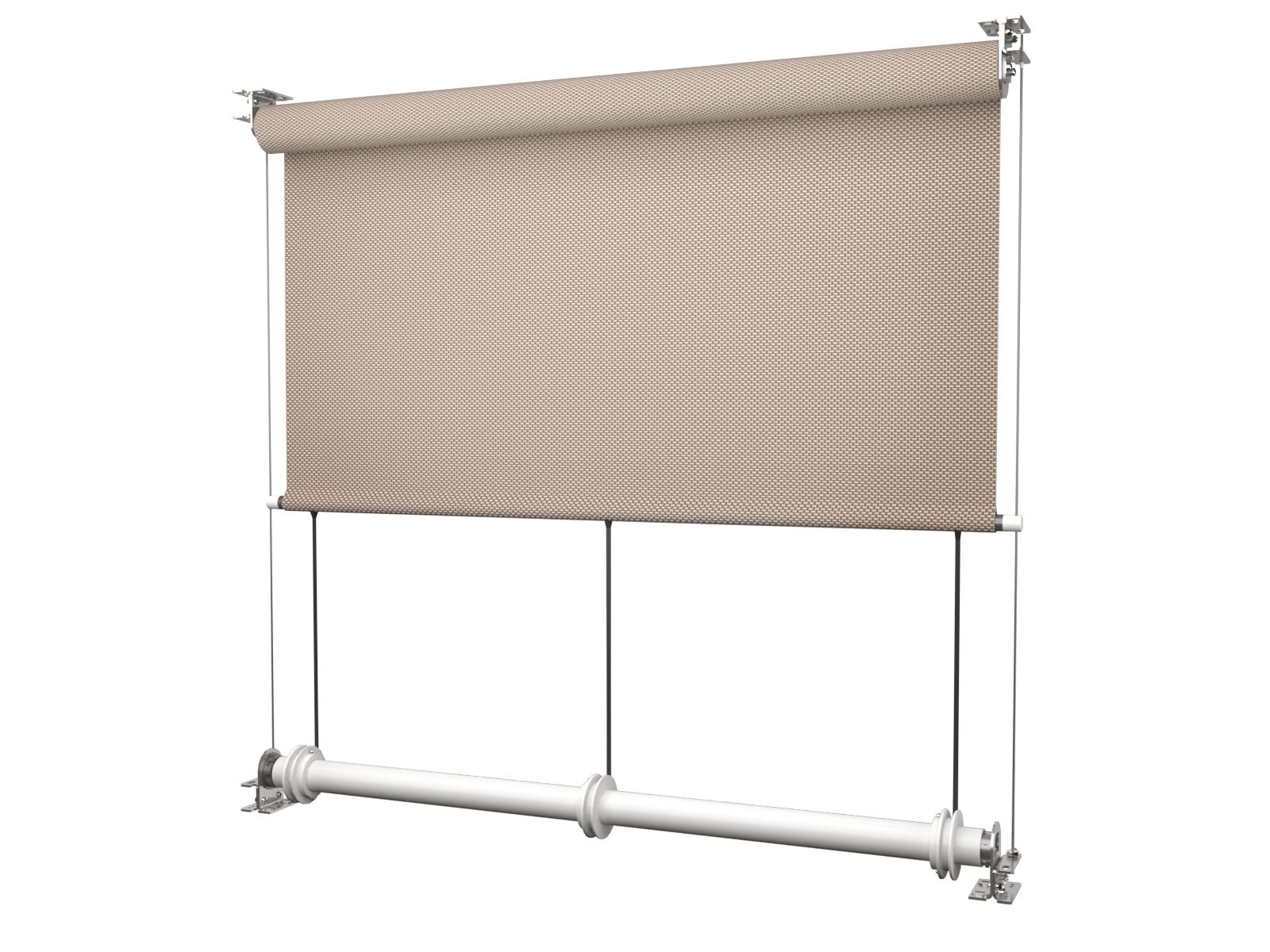

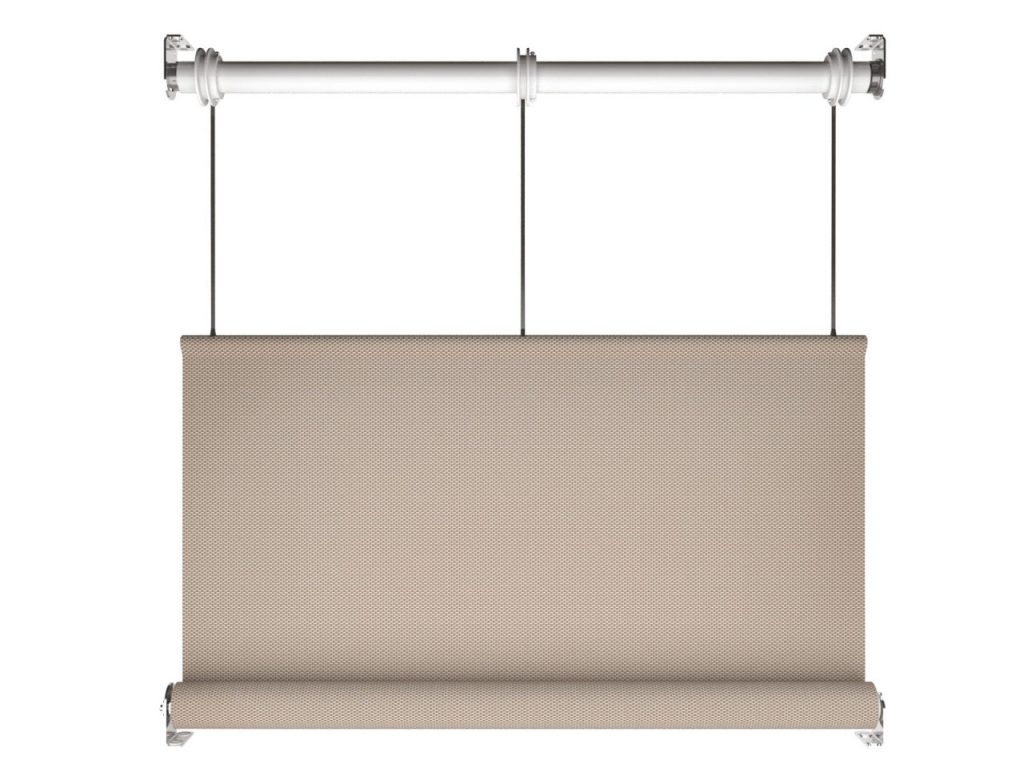

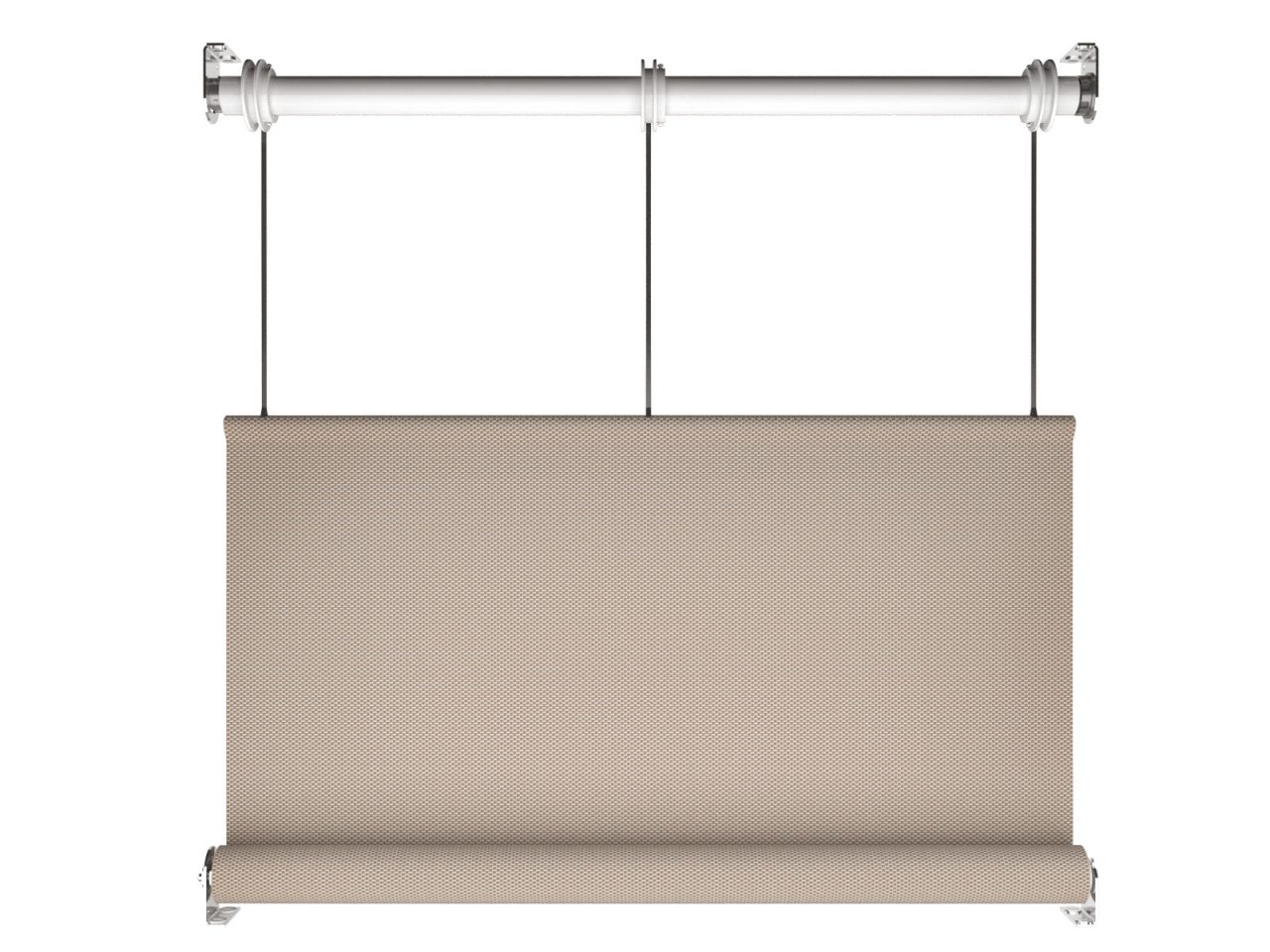

ZIP blinds with a fabric tension system are a development of the traditional concept of ZIP systems: the fabric is securely fixed in the curtain guides, which eliminates glare and ensures high wind resistance of the structure, however, unlike traditional ZIP systems, the fabric tension mechanism allows these curtains to work when tilted facade more than 15° from the vertical. Moreover, ZIP blinds with a fabric tension system can be mounted horizontally, as well as “upside down” — when the protective box is located at the bottom of the curtain. Installation is possible both indoors and outdoors.
In practice, the fabric tension system allows you to place a solar curtain in almost any opening: in addition to rectangular shapes, asymmetrical curtains are available for order — in the shape of trapezoids and triangles. The roller with fabric can be placed both in the ceiling space and in the floor.
Below are the dimensions of typical ZIP curtains with a fabric tension system. It is possible to produce curtains of large dimensions — upon request.
| Max. dimensions | 4000 x 6000 mm* |
| Min. dimensions | 750 x 750 mm |
| Inclination angle | Doesn’t matter. They can be mounted both inclined and horizontally. |
| Automatic control | Electric motor, obstacle detection option (both with and without radio) |
| Manual operation | Not avaliable |
| Cover box | Rectangular box 150x150mm, or without cover box |
| Fabric type | Screen, Blackout |
| *Depends on fabric |

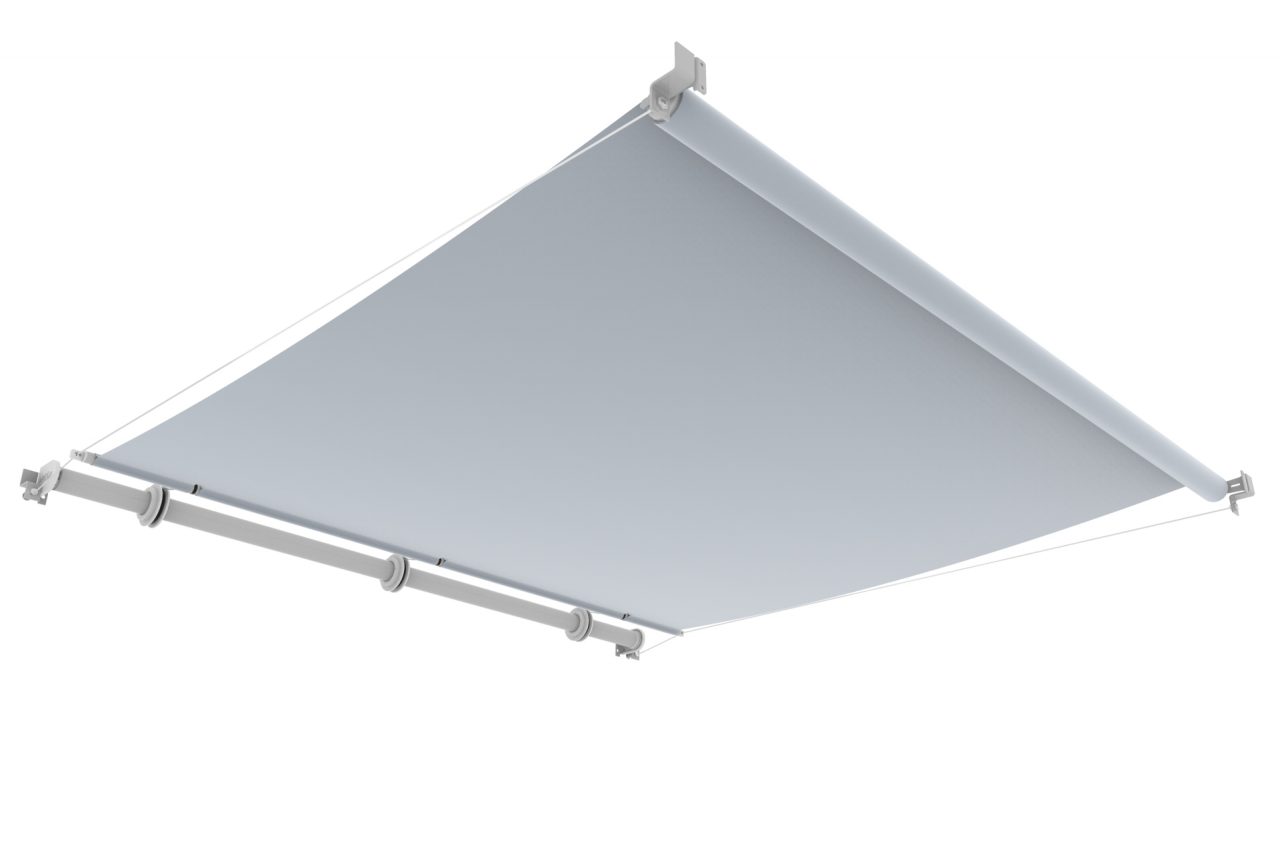

Horizontal roller blind «Skylight» is another variant for an effective internal sun protection system for horizontal and inclined surfaces. Scope of application: winter gardens, glass roofs, atriums, domes.
A distinctive feature of the system is its affordable price and ease of installation. Thanks to the structure of the fabric, unlike traditional pleated curtains, the «Skylight» system prevents insects from getting into the fabric, does not accumulate dust, does not require special care and retains its attractive appearance for a long time.
Below are the dimensions of typical Skylight systems. It is possible to produce blinds of asymmetrical designs (in the shape of a trapezoid, triangle) — upon request.
| Max. dimensions | 3000 x 3000 mm* |
| Min. dimensions | 750 x 750 mm |
| Inclination angle | Doesn’t matter. They can be mounted both inclined and horizontally. |
| Automatic control | Electric motor, automatic with obstacle detection possible (both with and without radio) |
| Manual operation | Chain |
| Cover box | Not avaliable |
| Fabric type | Weight no more than 250 g/sq.m. Depending on the design and size of the product, there may be a horizontal seam on the canvas. |
| *Depends on fabric |
Choose your Sun protection system
